Equipment and Capabilities
Our 140,000+ square foot temperature controlled service center allows Beaver Steel to hold the most advanced steel processing and servicing technology to date. Our equipment in addition to experienced personnel managing a wide variety of coil sizes and material types allows us to surpass your expectations and meet every quality demand.

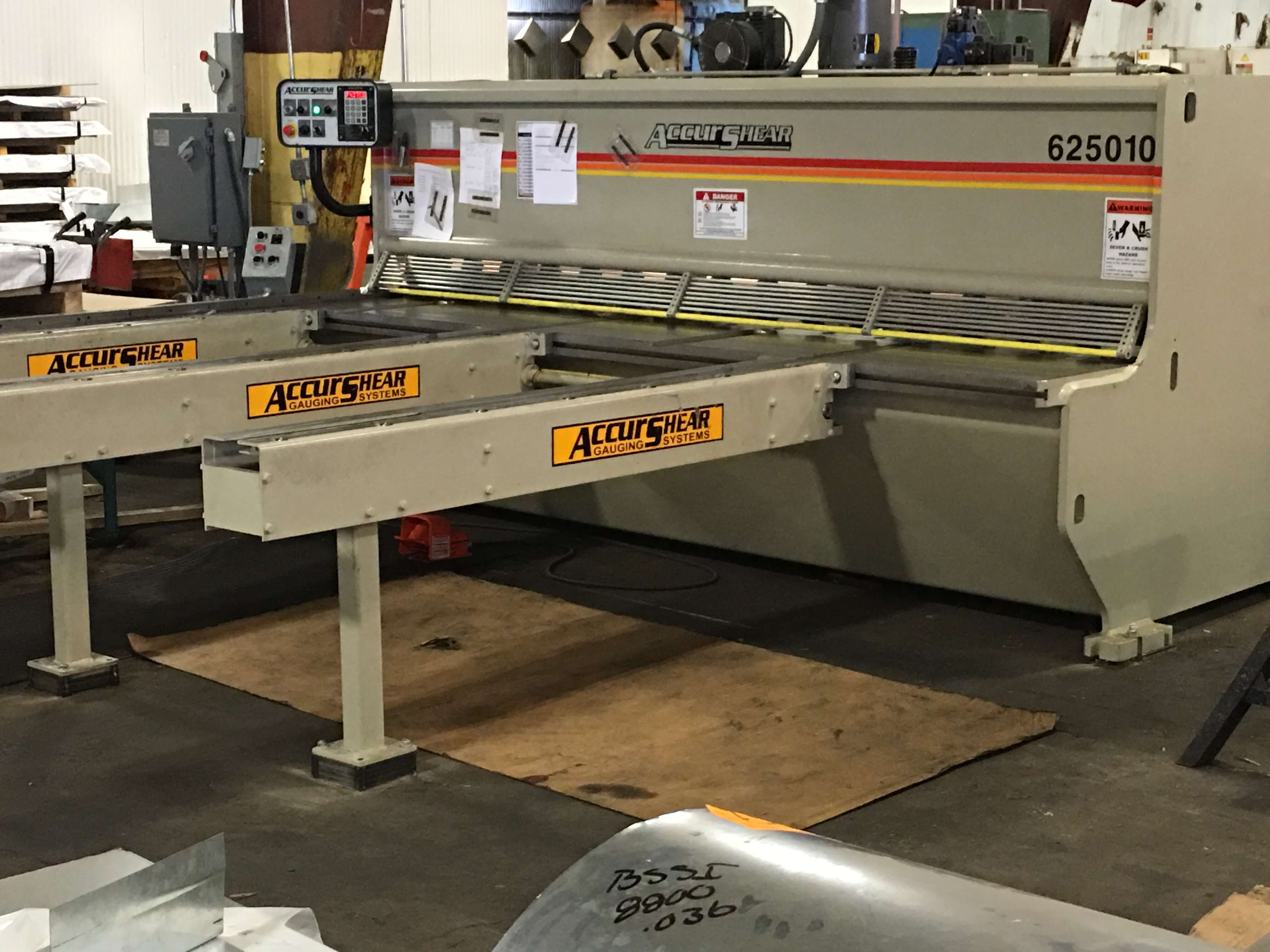

AccurShear Auto Stacking Precision Shear
Red Bud Precision Blanking;

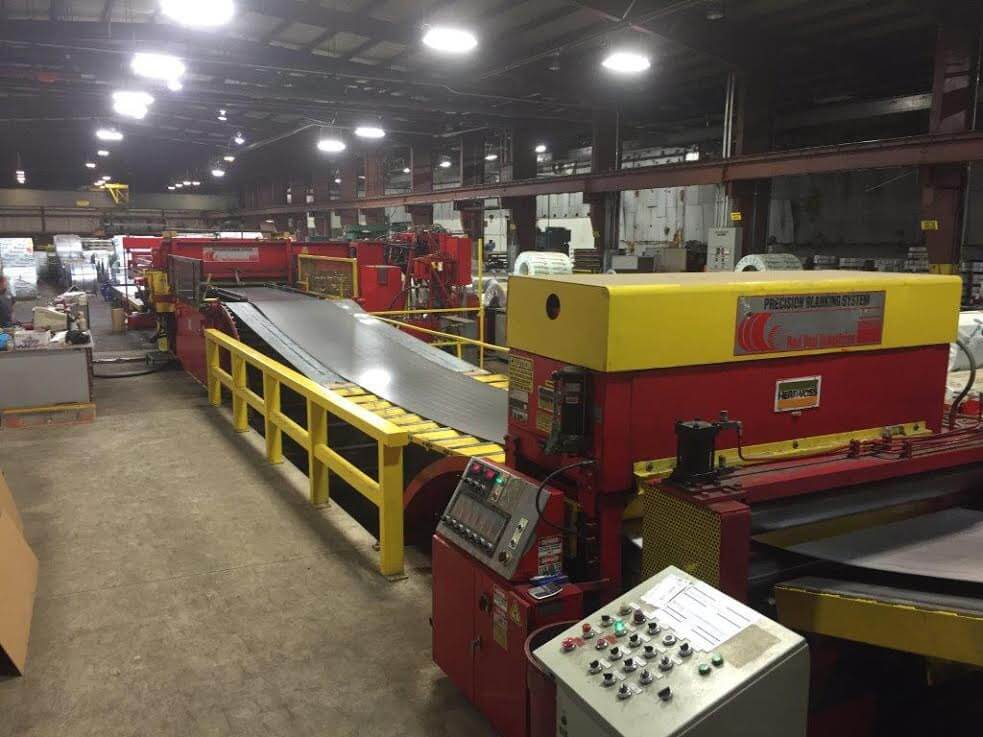

Cut to Length Line and Herr Voss Leveling

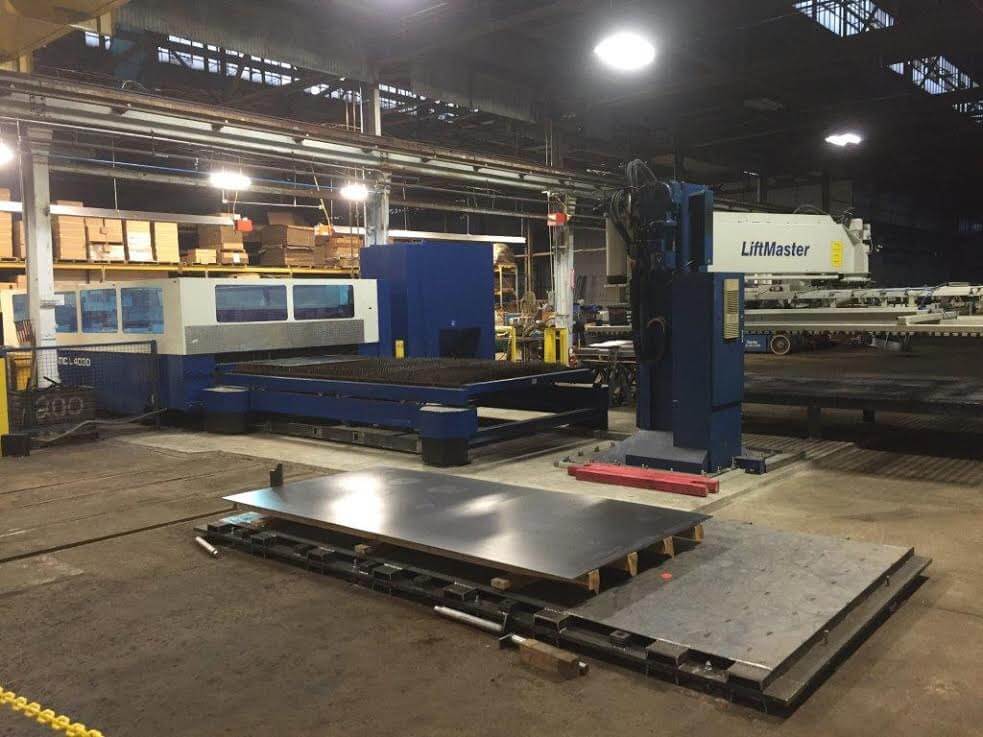

Trumpf Laser Cutting Equipment
Production Capabilities
| Line Capacity | Line 1 | Line 2 |
|---|---|---|
| Max Coil Weight: | 20,000 # | 24,380 # |
| Max Coil Width: | 60" | 72" |
| Coil ID: | 19"-24" | 20"-24" |
| Coil OD: | 60" | 67.5" |
| Min Stack Length: | 12" | 10" |
| Max Stack Length: | 144"+ | 168"+ |
| Min GA: | .008 | .020 |
| Max GA: | .060 | .135 |
| Max Speed: | 100 FPM | 180 FPM |
| Min Slit Width: | 4.0" | 3.0" |
| Max Slit Width: | 59.25" | 71.50" |
| Max Bdl. Weight: | 10,000 # | 10,000 # |
| Levelers | Sutton | Herr Voss |
| Back Ups: | 15 | 7 |
| Work Rolls: | 17 Screw Down Type | 19 Screw Down Type |
